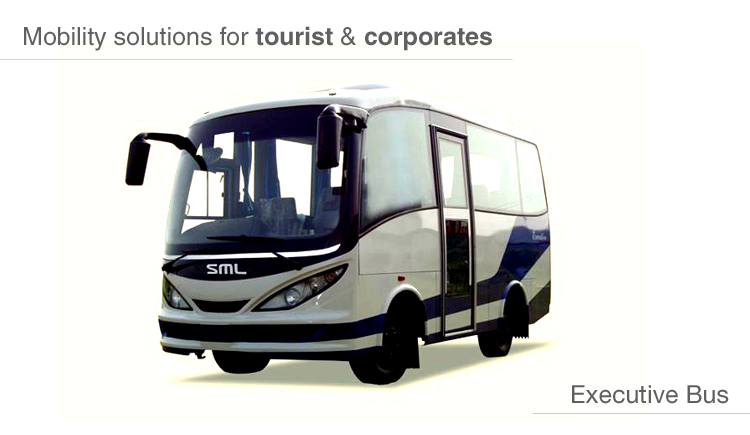

Executive Bus
Aero Dynamic Shape
Roof Mounted A/C with idividual ducts
Reading Lights
HatRacks
DVD Player with LCD Screen
ENGINE |
|
Model |
SLT3 EURO III Compliant |
TYPE |
4 Cylinder, in-Line direct injection |
Disptacement (cc) |
3455 |
Max. Power |
100 PS (75 kw) @ 3000 rpm |
ELECTRICALS |
|
Type |
12 VOLTS |
Battery |
2 NOS, 12V, 70AH |
DRIVE TRAIN |
|
Clutch
|
Dry single plate with diaphragm spring Hydraulically controlled |
Transmission |
5 Forward, 1 Reverse |
AXLES |
|
Front Axle |
Reverse Eliot "I" Beam Section |
Rear Axle |
Full floating Banze type |
STEERING |
|
Type |
Re-Circulating ball type, Power |
SUSPENSION |
|
Front
|
Semi elliptical type multi leaf spring with hydraulic double acting telescopic shock absorbers |
Rear
|
Semi elliptical type multi leaf spring with hydraulic double acting telescopic shock absorbers |
Optional |
Air Suspension |
BRAKES |
|
Service Brakes
|
Hydraulic dual circuit with hydraulic servo assist |
Parking Brake |
Mechanical Expanding type at rear of transmission |
Exhaust Brake |
Provided |
WHEELS AND TYRES |
|
Wheels |
5 Stud Wheel Discs |
No. of Tyres |
5 (Including 1 Spare Tyre) |
Size |
7.50 X 16-14 - PR Cross |
FUEL TANK |
|
Capacity |
90 LTRS. |
PERFORMANCE |
Dry single plate with diaphragm spring, |
Max Speed |
98 km / hr |
SEATS |
|
No. of Seats |
13+1 |
Type
|
Push Back, Reclining Comfortable Seats with padded Arm Rests and Foot Rest |
DIMENSIONS |
|
Wheel Base |
2815 MM |
Ground Clearance |
206 MM |
Overall Length |
5875 MM |
Overall Width |
2155 MM |
Overall Height |
3125 MM |
TRACK |
|
Rear |
1640 MM |
| Front | 1640 MM |
Features
Aero Dynamic Shape
Roof Mounted A/C with idividual Ducts
Reading Lights
HatRacks
DVD Player with LCD Screen
Driver Controlled Passenger Door
Tinted Sealed Glasses
Curtains
Note : As per our policy of continuous improvement, specifications may change without notice.
