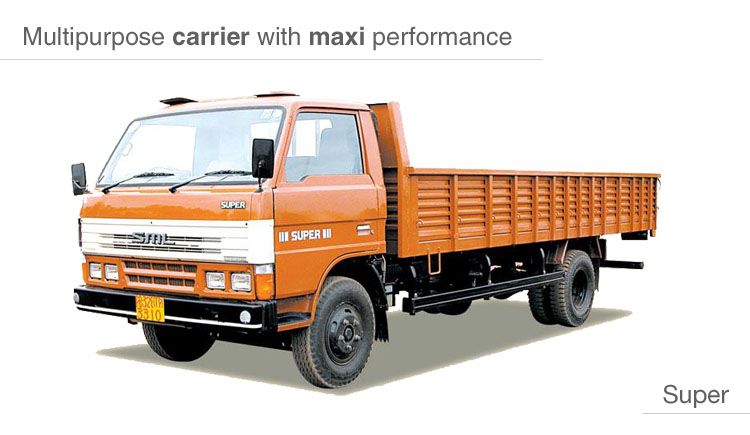

Super
| Model | Super BS – III | Super BS-IV | ||
|---|---|---|---|---|
| Engine & Displacement | SLT3 & Numeral , 3455 cc | SLT4 & Numeral , 3455 cc | ||
| Type | In line 4-Cylinder Direct Injection | In line 4-Cylinder Common Rail Direct Injection | ||
| Diesel Turbo Charger with Intercooler | ||||
| Max.Engine Output | 75 Kw @3000 rpm | 75 Kw @2800 rpm | ||
| Max. Torque | 270Nm@1750-2000 rpm | 296Nm @ 1500 rpm | ||
| Clutch | Single plate Diaphragm Type , Dia. 260mm | |||
| Gear Box | Synchromesh Manual 5-Forward and 1-Reverse | |||
| Steering | Mechanical /Power Steering (Optional) | |||
| Brakes | Hydraulic Vaccume assisted/ Air brake (optional) | |||
| Suspension | Semi Elliptical Type Multi Leaf Spring | |||
| Wheel & Tyres | 7.50” X 16” - 16 PR | |||
| No of Tyres | 6 + 1 | |||
| Wheelbase (mm) | 2815 AB | 3335 | 3940 | 4760 |
| Min. Turning Circle Diameter (m) | 5.5 | 6.4 | 7.6 | 9.4 |
| Front Axle Weight (kg) | 3160 | 3160 | 3160 | 3160 |
| Rear Axle Weight (kg) | 5560 | 5560 | 5560 | 5560 |
| Kerb Weight (kg) | 2890 | 2800 | 2850 | 3000 |
| Max. Permissible GVW (kg) | 8720 | |||
| Cargo Box Dimensions (LXBXH) (mm) | ||||
| Variants | ||||
| Cab Halfdeck Loadbody | 3740X2080X570 | 4260X2080X570 | 5240X2080X570 | 6610X2080X570 |
| Cab Semideck Loadbody | 3740X2080X1030 | 4260X2080X1030 | 5240X2080X1030 | Not Available |
| Cab Highdeck Loadbody | 3740X2080X1695 | 4260X2080X1695 | 5240X2080X1695 | Not Available |
| Cabin Chasis | Available | |||
Features
Available in BS-III & BS-IV versions
Powerful engine, higher pickup, higher torque at lower RPM, Gradeability and fuel efficient
Heavy duty gearbox and bigger clutch – longer life
Steering with variable gear ratio – less driver fatigue
Roof ventilation for better comfort
Ready availability of spares at reasonable price
Note : As per our policy of continuous improvement, specifications may change without notice.
