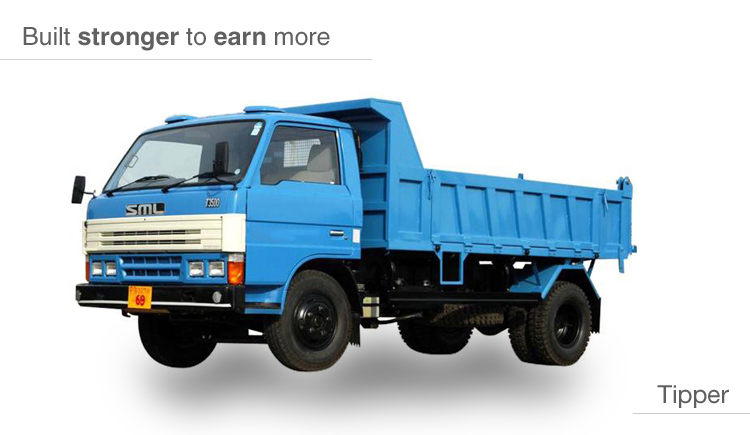

Model	Tipper BS – III	Tipper BS-IV
Engine & Displacement	SLT3 & Numeral , 3455 cc	SLT4 & Numeral , 3455 cc
Type	In line 4-Cylinder Direct Injection	In line 4-Cylinder Common Rail Direct Injection
Diesel Turbo Charger with Intercooler
Max.Engine Output	75 Kw @3000 rpm	75 Kw @2800 rpm
Max. Torque	270Nm@1750-2000 rpm	296Nm @ 1500 rpm
Clutch	Single plate Diaphragm Type , Dia. 260mm
Gear Box	Synchromesh Manual 5-Forward and 1-Reverse
Steering	Mechanical /Power Steering (Optional)
Brakes	Hydraulic Vaccume Assisted	Air Brake
Suspension	Semi Elliptical Type Multi Leaf Spring
No of Tyres	6 + 1
Wheel & Tyres	7.50”X16” - 16PR
Models	WT49ES-Prestige	WT49TC-Prestige	ZT54ES-Sipreme	ZT54ES-Supreme	ZT54SM-Samrat	ZT54AB-Super AB	ZT54AB-Super AB
Wheelbase (mm)	2815	3335	2815	3335	3335	3335	2815
Min. Turning Circle Diameter (m)	5.5	6.4	5.5	6.4	6.4	6.4	5.5
Front Axle Weight (kg)	2360	2360	2800	2800	3370	3160	3160
Rear Axle Weight (kg)	4080	4080	5200	5200	6880	5560	5560
Kerb Weight (kg)	2550	3100	2800	2800	3100	3150	3310
Max. Permissible GVW (kg)	6440	6440	8000	8000	10250	8720	8720
Body and Tipping System
Body Capacity (Cu.Mtr)	3.5	4	4	4	5.5	4.5	4
Height (mm)	460	500	500	500	625	500	500
Tipping angle (degrees)	45	45	45	45	45	45	45
Hydraulic Cylinder (No's)	1	2	2	2	2	2	2

Features

Available in BS-III & BS-IV versions

Powerful engine, higher pickup, higher torque at lower RPM, Gradeability and fuel efficient

Heavy duty gearbox and bigger clutch – longer life

Steering with variable gear ratio – less driver fatigue

Roof ventilation for better comfort

Ready availability of spares at reasonable price

Box type chasis with tubular cross members- carry more load, provide better strength and rigidity

Note : As per our policy of continuous improvement, specifications may change without notice.
